MECHANICAL SUSPENSIONS
Indian/Chinese type suspension 10,12 & 14 tons
|
A1 |
A1* |
A2 |
A2* |
H |
ITEM |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
6.2101/12F |
424 |
384 |
415 |
375 |
142 |
6.2102/12F |
449 |
409 |
440 |
400 |
167 |
6.2103/12F |
474 |
434 |
465 |
425 |
192 |
6.2104/12F |
499 |
459 |
490 |
450 |
217 |
6.2105/12F |
524 |
484 |
515 |
475 |
242 |

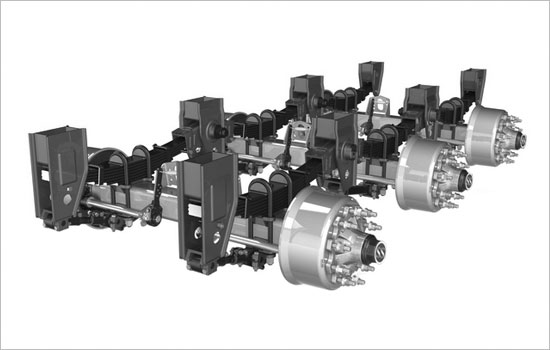

TRIPLE/TRIDEM SUSPENSION WITH 8/9-LEAF SPRING
|
A1 |
A1* |
A2 |
A2* |
A3 |
A3* |
H |
ITEM |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
6.3101/12F |
433 |
393 |
424 |
384 |
415 |
375 |
142 |
6.3102/12F |
458 |
418 |
449 |
409 |
440 |
400 |
167 |
6.3103/12F |
483 |
443 |
474 |
434 |
465 |
425 |
192 |
6.3104/12F |
508 |
468 |
499 |
459 |
490 |
450 |
217 |
6.3105/12F |
533 |
493 |
524 |
484 |
515 |
475 |
242 |
NOTE:
1. 90mmx16mmx8/9 leaf suggested leaf spring
2. Amounting height for unloading status
3. A* mounting height in rated loading status
High-strength material with strong carrying capacity, remarkable wear resistance property and performance stability and long service life.
Wheel Track adjustable easily and accurately, which protect the tires from abnormal wear.
Easy for fitting and swift maintenance.
Passed strict bench testing and road testing.
PRODUCT FEATURES
High-strength material with strong carrying capacity, remarkable wear resistance property and performance stability and long service life.
Wheel Track adjustable easily and accurately, which protect the tires from abnormal wear.
Easy for fitting and swift maintenance.
Passed strict bench testing and road testing.
High-strength material with strong carrying capacity, remarkable wear resistance property and performance stability and long service life.
Wheel Track adjustable easily and accurately, which protect the tires from abnormal wear.
Easy for fitting and swift maintenance.
Passed strict bench testing and road testing.

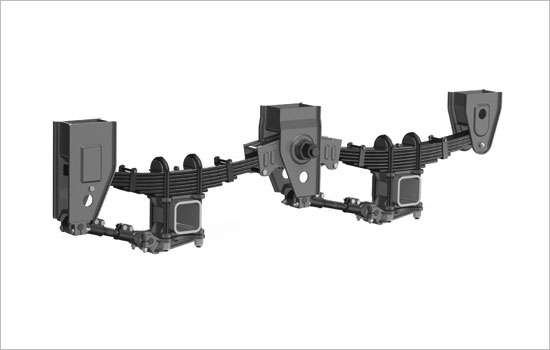

TANDEM/DOUBLE SUSPENSION WITH 8/9-LEAF SPRING
TRAILER AXLE UNDERSLUNG SUSPENSION
TRAILER AXLE UNDERSLUNG SUSPENSION
NOTE:
1. 90mmx16mmx8/9 leaf
suggested leaf spring
2. Amounting height for
unloading status
3. A* mounting height in rated
loading status
