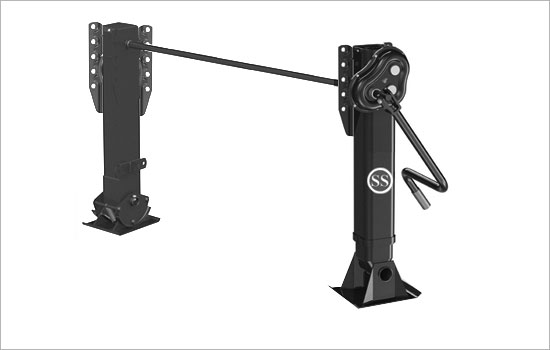

LANDING GEARS
Landing gears 17.5 & 18.5 Bolt size
Landing gears 17.5 & 18.5 Bolt size
| Types | Part No. | Lift | Height |
| 80001T | T | 430 | 794 |
| 80002T | T | 480 | 844 |
| Standard Specification | |
| Capacity | 28.000 kg/pair |
| Static Load | 80,000 kg/pair |
| Weight | 98 kg |
| Crank Force | |
| Low Gear | 0.42mm Per Trun (mm/r) of handle |
| High Gear | 3.5mm Per Trun (mm/r) of handle |
| Types | Part No. | Lift | Height |
| 80001T | T | 430 | 830 |
| 80002T | T | 480 | 880 |
| 80001S | S | 430 | 870 |
| 80002S | S | 480 | 920 |
| Standard Specification | |
| Capacity | 28.000 kg/pair |
| Static Load | 80,000 kg/pair |
| Weight | 102 kg |
| Crank Force | |
| Low Gear | 0.9mm Per Trun (mm/r) of handle |
| High Gear | 9mm Per Trun (mm/r) of handle |
PRODUCT FEATURES
Numbers of innovative design make the product easy to use and convenient to maintain.
Comply with Indian Safety Regulation For Commercial Vehicles.
Light weight design maintaining the reliability feature improves the carrying capacity of the vehicle effectively.
High strength material with unparalleled carrying capacity.
Brand new gear ratio, easy and swift for operation.
Feed screw nut with grease storage lengthens the service cycle greatly.
| Standard Specification | |
| Capacity | 28.000 kg/pair |
| Static Load | 80,000 kg/pair |
| Weight | 98 kg |
| Crank Force | |
| Low Gear | 0.42mm Per Trun (mm/r) of handle |
| High Gear | 3.5mm Per Trun (mm/r) of handle |
| Standard Specification | |
| Capacity | 28.000 kg/pair |
| Static Load | 80,000 kg/pair |
| Weight | 102 kg |
| Crank Force | |
| Low Gear | 0.9mm Per Trun (mm/r) of handle |
| High Gear | 9mm Per Trun (mm/r) of handle |
Numbers of innovative design make the product easy to use and convenient to maintain.
Comply with Indian Safety Regulation For Commercial Vehicles.
Light weight design maintaining the reliability feature improves the carrying capacity of the vehicle effectively.
High strength material with unparalleled carrying capacity.
Brand new gear ratio, easy and swift for operation.
Feed screw nut with grease storage lengthens the service cycle greatly.
| Standard Specification | |
| Capacity | 28.000 kg/pair |
| Static Load | 80,000 kg/pair |
| Weight | 102 kg |
| Crank Force | |
| Low Gear | 0.9mm Per Trun (mm/r) of handle |
| High Gear | 9mm Per Trun (mm/r) of handle |
Numbers of innovative design make the product easy to use and convenient to maintain.
Comply with Indian Safety Regulation For Commercial Vehicles.
Light weight design maintaining the reliability feature improves the carrying capacity of the vehicle effectively.
High strength material with unparalleled carrying capacity.
Brand new gear ratio, easy and swift for operation.
Feed screw nut with grease storage lengthens the service cycle greatly.
| Standard Specification | |
| Capacity | 28.000 kg/pair |
| Static Load | 80,000 kg/pair |
| Weight | 98 kg |
| Crank Force | |
| Low Gear | 0.42mm Per Trun (mm/r) of handle |
| High Gear | 3.5mm Per Trun (mm/r) of handle |
