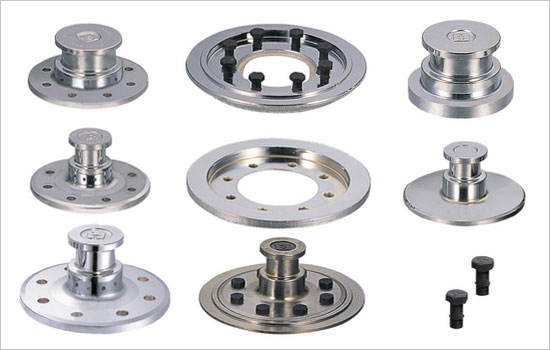

KING PIN SERIES
King Pins 2 & 3.5 inches
King Pins 2 & 3.5 inches
| King Pins 2 & 3.5 inches | |||
| Description | Model No. | Spec | Slide Plate Thickness (A) |

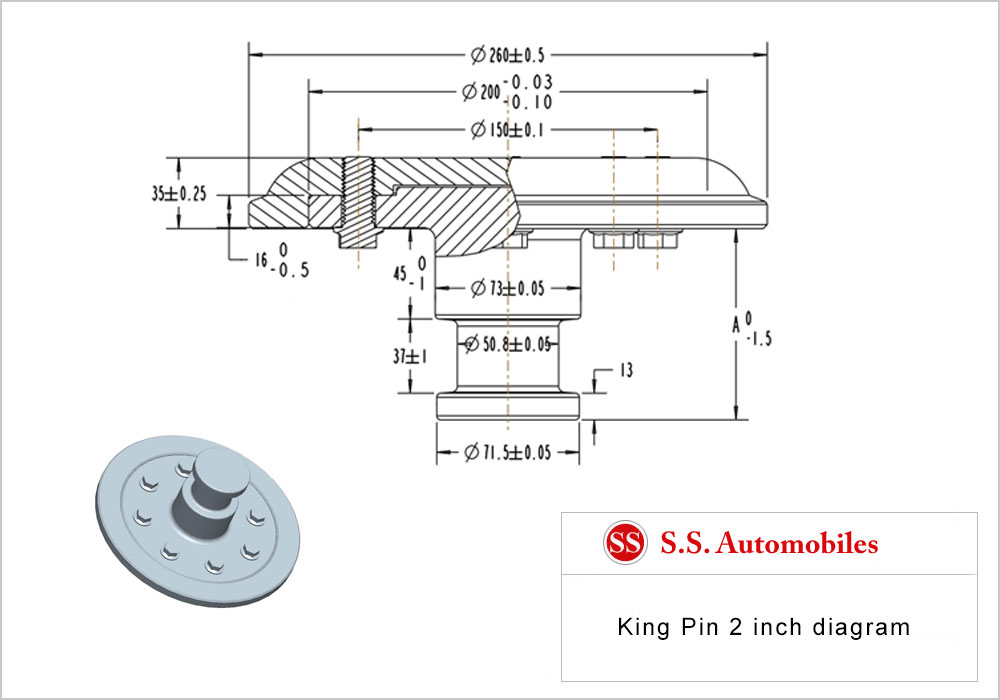

| H50 (2" Welding type ) | |||
| 2" Weldable King Pin | H50-08 | 2" -50mm |
8mm |
| 2" Weldable King Pin | H50-10 | 2" -50mm |
10mm |
| 2" Weldable King Pin | H50-12 | 2" -50mm |
12mm |
| Z50 (2" Assembling type ) | |||
| 2" Bolton King Pin | Z50-08 | 2" -50mm | 8mm |
| 2" Bolton King Pin | Z50-10 | 2" -50mm | 10mm |
| 2" Bolton King Pin | Z50-12 | 2" -50mm | 12mm |

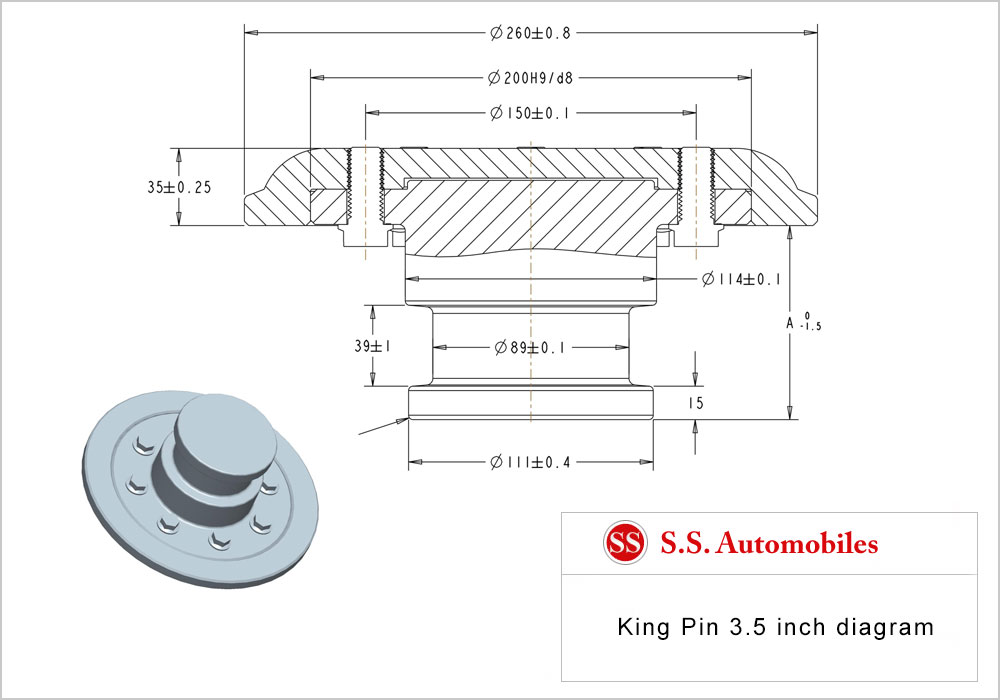

| Z90A (3.5" Assembling type ) | |||
| 3.5" A Bolton King Pin | Z90A-08 | 3.5" -90mm | 8mm |
| 3.5" A Bolton King Pin | Z90A-10 | 3.5" -90mm | 10mm |
| 3.5" A Bolton King Pin | Z90A-12 | 3.5" -90mm | 12mm |
| 3.5" A Bolton King Pin | Z90A-14 | 3.5" -90mm | 14mm |
| 3.5" A Bolton King Pin | Z90A-16 | 3.5" -90mm | 16mm |
| Z90C (3.5" Assembling type ) | |||
| 3.5" C Bolton King Pin | Z90C-08 | 3.5" -90mm | 8mm |
| 3.5" C Bolton King Pin | Z90C-10 | 3.5" -90mm | 10mm |
| 3.5" C Bolton King Pin | Z90C-12 | 3.5" -90mm | 12mm |
| 3.5" C Bolton King Pin | Z90C-14 | 3.5" -90mm | 14mm |
| 3.5" C Bolton King Pin | Z90C-16 | 3.5" -90mm | 16mm |
PRODUCT FEATURES
Manufactured from high tensile drop forgings and heat-treated.
Available in bolt-on series and welded series.
Complies with German and American standard
